2007 Lincoln Town Car Info Systems & Data Sheets
The 2007 Lincoln Town Car runs the same 4.6L SOHC two-valve Romeo block as the rest of the Panther platform, but tuned specifically for Town Car duty — 239 hp at 4,900 rpm and 287 lb-ft at 4,100 rpm, paired to the 4R75W four-speed automatic. Those output figures are higher than the civilian Crown Vic (224 hp / 272 lb-ft) and reflect a different PCM calibration, intake, and exhaust tuning optimized for the Town Car's long-wheelbase body and luxury NVH targets rather than police or taxi performance. The 2007 model year is the third year of the electronic throttle control era on the Panther platform — drive-by-wire has been standard since 2005 — and the Town Car's ETC implementation is mechanically identical to the Crown Vic and Grand Marquis, though several PCM pin assignments differ at the connector level. C175B pin 8, which carries the brake pedal position switch signal on the Crown Vic and Grand Marquis, is not used on the Town Car. C175T pin 21, which carries an engine vacuum signal on the Crown Vic, is also not used on the Town Car. C175B pin 14 carries an A/C clutch relay control signal that's specific to the Town Car's A/C architecture. The Town Car BJB uses Micro relays at positions 201–209 and Mini relays at 301–304 — different hardware from the Crown Vic and Grand Marquis's 1/2 ISO and Full ISO relays, which matters when sourcing replacements. The 2007 Town Car also retains the moonroof feed at BJB position 2, fog lamp relay at BJB 202, and has the power decklid module at BJB 108 — all Town Car-specific versus the P71/civilian Crown Vic split.
Download Your Schematics:
- 2007 Lincoln Town Car Battery Junction Fuse Box Schematic Data Sheet
- 2007 Lincoln Town Car Powertrain Control Module Schematic Data Sheet
- 2007 Lincoln Town Car Central Junction Box Schematic Data Sheet
Resources:
- Ford OBD-2 Diagnostic Trouble Codes List
- 2003–2011 Panther Platform Resources & Manuals List
- Label Installation Guide
Labels:
In this post:
- Engine Specifications
- Transmission Specifications
- Battery Junction Box Fuse Panel Data & Info
- Powertrain Control Module Data & Info
- Central Junction Fuse Box Data & Info
- Trim Level Fuse Differences
- Known Issues & TSB Reference
- Scheduled Maintenance Intervals
Engine Specifications
The 2007 Town Car runs the 4.6L two-valve SOHC Romeo V8 — same block and heads as the Crown Vic and Grand Marquis, but the PCM calibration, intake manifold, and exhaust tuning are specific to the Town Car application. The result is a higher output than the civilian Crown Vic: 239 hp versus 224, and 287 lb-ft of torque versus 272. Those gains reflect a more aggressive intake runner design and a calibration prioritizing mid-range torque delivery for the longer, heavier body. The ETC system is identical in hardware to the rest of the 2005–2011 Panther platform — same throttle body, same APP sensor configuration — but the PCM tune differs. All figures are SAE net.
| Specification | Value |
|---|---|
| Engine Family | Ford Modular V8 — Romeo cast |
| Displacement | 4.6L (4,601 cc / 280.8 cu in) |
| Configuration | V8, 90° — SOHC, 2 valves per cylinder (16 total) |
| Bore × Stroke | 90.2 mm × 90.0 mm (3.55 in × 3.54 in) |
| Compression Ratio | 9.4:1 |
| Horsepower | 239 hp @ 4,900 rpm (SAE net) |
| Torque | 287 lb-ft @ 4,100 rpm (SAE net) |
| Redline | ~5,550 rpm |
| Fuel Type | Unleaded — 87 octane minimum (regular) |
| Fuel Injection | Sequential Multi-Port Fuel Injection (SEFI) |
| Throttle Control | Electronic (Drive-By-Wire / ETC) — standard since 2005 |
| Ignition | Coil-on-plug (COP) — 8 individual coils, no distributor |
| Engine Oil Capacity | 6 quarts with filter change |
| Engine Oil Spec | SAE 5W-20 (Motorcraft) |
| Coolant Capacity | ~17.9 liters (18.9 qts / 4.7 gal) |
| Coolant Spec | Motorcraft Premium Gold (yellow) — do not mix with green |
| Fuel Tank Capacity | 19 gallons |
Transmission Specifications
The 2007 Town Car uses the 4R75W — same unit as the 2005–2011 Crown Vic and Grand Marquis. The 4R75W replaced the earlier 4R70W across the Panther lineup starting in 2005, adding the turbine shaft speed (TSS) sensor at C175T pin 15, a stronger 24-lug ring gear, and a revised front pump. Gear ratios are unchanged from the 4R70W. The Town Car's 4R75W is tuned for the heavier body and longer wheelbase — shift firmness and TCC lockup programming differ from the Crown Vic in the PCM calibration, but the hardware is identical. Fluid spec is Mercon V throughout — do not use standard Mercon or Dexron in this unit. Lincoln used the Town Car extensively in livery, taxi, and limo service, making it a high-cycle application where the 150,000-mile ATF interval should be treated as an absolute maximum, not a guideline.
| Specification | Value |
|---|---|
| Transmission Model | Ford 4R75W 4-speed automatic |
| Type | Rear-wheel drive, 4-speed automatic with overdrive |
| 1st Gear Ratio | 2.84:1 |
| 2nd Gear Ratio | 1.55:1 |
| 3rd Gear Ratio | 1.00:1 |
| 4th Gear Ratio (OD) | 0.70:1 |
| Reverse Ratio | 2.32:1 |
| Torque Capacity | ~700 Nm |
| Turbine Speed Sensor | Yes — TSS (C175T pin 15) feeds PCM for TC slip monitoring |
| Fluid Type | Mercon V ATF — do not substitute Mercon or Dexron |
| Fluid Capacity | ~13.9 quarts (total system, dry fill) |
| Dipstick | May be absent on sealed units — check via fill plug on lift |
| Axle Ratio Options | 2.73:1 (standard) / 3.27:1 |
| Rear Axle | Ford 8.8 inch |
| Rear Axle Fluid | 80W-90 (standard) or 75W-140 synthetic |
Battery Junction Box Fuse Panel Data & Info
Location: Engine bay, passenger side, behind battery | All information verified with AllData.
The Battery Junction Box (BJB) on the 2007 Town Car serves the same role as on any Panther-platform car — under-hood high-current distribution for the starter relay, cooling fan, ABS pump, blower relay, defroster relay, PCM power chain, and the two main feeds (BJB 103 and 104) that power the interior CJB. The Town Car BJB layout for 2007 differs from the Crown Vic in several meaningful ways: position 2 carries moonroof and rear heated seat feeds (not a police-only spot light circuit), position 5 is the I/P power point (not RASM/VAPS as on the Crown Vic), position 108 is the Power Decklid Module (PDM) at 40A, and positions 111–115 carry rear power points, air compressor, rear cigar lighters, and the I/P fuse box feed #3 — civilian comfort circuits the police-spec Crown Vic doesn't have. The relay format is also different: Micro relays at 201–209, Mini relays at 301–304. These are physically smaller than the 1/2 ISO and Full ISO relays used in the Crown Vic and Grand Marquis — do not cross-substitute. Sourcing the wrong format relay will leave the socket unpopulated or require adapters.
The same moisture and heat failure modes that affect all Panther BJBs apply here, but Town Car BJB failures have an additional livery context: high-mileage Town Cars used in taxi or limo service see far more thermal cycling and vibration than civilian Crown Vics. The PDM circuit at BJB 108 (40A) is a common fault point on high-mileage Town Cars — the trunk lid solenoid and pulldown module draw consistent current from this feed, and corrosion at the fuse legs or bus contact will show up as intermittent power decklid failures before the fuse actually blows. Check for voltage drop at BJB 108 under load if the decklid is sluggish or intermittent before replacing the PDM itself. The same voltage-drop discipline applies to all BJB feeds: anything over 0.1–0.2V across a connection under load indicates resistance that will eventually generate heat and escalate the problem.
| # | AMP | FUNCTION |
|---|---|---|
| 1 | 30A | Ignition switch |
| 2 | 20A | Moonroof, Rear heated seats (2007); Rear heated seats (2008–2011) |
| 3 | 10A | Powertrain Control Module (PCM) keep alive power and canister vent |
| 4 | 20A | Fuel relay feed |
| 5 | 20A | Instrument panel power point |
| 6 | 15A | Alternator regulator |
| 7 | 30A | PCM relay feed |
| 8 | 20A | Driver's Door Module (DDM) |
| 9 | 15A | Ignition coil relay feed |
| 10 | 20A | Horn relay feed |
| 11 | 15A | A/C clutch relay feed |
| 12 | 20A | Audio |
| 13 | 10A | Rear Air Suspension Module (RASM) |
| 14 | 20A | Stop lamp switch |
| 15 | 15A | Lumbar, Fuel door |
| 16 | 20A | Heated seats |
| 17 | — | Not used |
| 18 | — | Not used |
| 19 | 15A | Injectors |
| 20 | 15A | PCM |
| 21 | 15A | Powertrain loads and sensors |
| 22 | — | Not used |
| 23 | 10A | Heated mirrors |
| 24 | — | Not used |
| 101 | 40A | Blower relay feed |
| 102 | 50A | Cooling fan |
| 103 | 50A | Instrument panel (I/P) fuse box feed #1 |
| 104 | 50A | Instrument panel (I/P) fuse box feed #2 |
| 105 | 30A | Starter relay feed |
| 106 | 40A | Anti-lock Brake System (ABS) module (pump) |
| 107 | 40A | Rear defroster relay feed |
| 108 | 40A | Power Decklid Module (PDM) |
| 109 | 20A | ABS module (valves) |
| 110 | 30A | Wiper module |
| 111 | 20A | Rear power point #1 (Left) |
| 112 | 30A | RASM (Air compressor) |
| 113 | 20A | Rear power point #2 (Right) |
| 114 | 20A | Instrument panel fuse box feed #3 |
| 115 | 20A | Rear cigar lighters |
| 116 | 30A | Decklid pulldown module |
| 117 | 20A | Fog lamps (2007); Not used (2008); Cigar lighter (2009–2011) |
| 118 | — | Not used |
| 201 | Micro relay | A/C clutch relay |
| 202 | Micro relay | Fog lamps relay (2007); Not used (2008–2011) |
| 203 | Micro relay | Ignition coil relay |
| 204 | Micro relay | PCM relay |
| 205 | — | Not used |
| 206 | Micro relay | Fuel relay |
| 207 | — | Not used |
| 208 | — | Not used |
| 209 | Micro relay | Horn relay |
| 301 | Mini relay | Starter relay |
| 302 | Mini relay | RASM (Air compressor) relay |
| 303 | Mini relay | Blower relay |
| 304 | Mini relay | Rear defrost relay |
| 401 | — | Not used |
| 501 | Diode | A/C clutch (2007); Not used (2008–2011) |
| 502 | Diode | Reverse battery |
| 503 | Diode | Horn, Door latch |
| 601 | 20A Circuit Breaker | Power seats, Driver seat module |
| 602 | 20A Circuit Breaker | Delayed accessory relay for windows, moonroof, audio and navigation system (2007); Delayed accessory relay for windows, audio (2008–2011) |
Legend
- # — Terminal Position
- ABS — Anti-lock Brake System
- ACC — Accessory
- AMP — Terminal Amperage
- CB — Circuit Breaker
- DDM — Driver's Door Module
- FUNCTION — Circuit Function
- I/P — Instrument Panel
- LCM — Lighting Control Module
- PCM — Powertrain Control Module
- PDM — Power Decklid Module
- RASM — Rear Air Suspension Module
Powertrain Control Module (PCM/ECU) Data & Info
Location: Engine bay, driver's side inner fender | All information verified with AllData.
The 2007 Town Car PCM uses the same three-connector 150-pin layout as all 2005–2011 Panther-platform vehicles — C175T (left, black, part 12B637), C175B (center, black, part 14290), C175E (right, black, part 12B637) — but several pin assignments differ from the Crown Vic and Grand Marquis, and using the wrong model's pinout during diagnosis will send you in the wrong direction. The most important Town Car-specific differences: C175B pin 8 is not used on the Town Car (the Crown Vic and Grand Marquis use this pin for the brake pedal position switch signal). C175B pin 14 carries an A/C clutch relay control signal (OG/LB, circuit 73, 20 ga) that does not appear in the Crown Vic pinout — the Town Car's A/C relay control circuit is routed through the PCM differently. C175T pin 21 is not used on the Town Car (the Crown Vic uses it for an engine vacuum signal). These three differences alone account for a significant percentage of PCM wiring misdiagnoses when technicians use a generic Panther pinout without confirming the model.
C175B handles the ETC system (APP sensors 1–3 at pins 5, 17, 28; ETC Vref 1 and 2 at pins 4 and 24; signal return at pin 6), the HS CAN bus (pins 11 and 23), fuel pump monitoring (pins 12 and 21), starter relay control (pin 2), and the ground cluster at pins 47–50 (BK/WH, circuit 570, 18 ga). The ground cluster is the same critical diagnostic starting point as on all Panther PCMs — four grounds at a single node, and any resistance here produces wide-ranging, hard-to-attribute symptoms. C175E carries all eight coil-on-plug outputs, all eight injector controls, the downstream O2 sensors, MAF, IAT, CHT, crank and cam position sensors, knock sensors, MAP, DPFE, and both ETC motor drive signals (pins 34 and 51 at 18 ga). The Town Car retains EGR at C175E pin 21 (DPFE sensor input) and the EVR solenoid control at pin 63.
On a 2007 Town Car with livery or high-mileage history, connector corrosion at C175B is the most common PCM-adjacent failure. High-cycle taxi and limo use means the harness and connectors age faster than on a typical civilian car. Start at the C175B ground cluster (pins 47–50) with a voltage-drop test engine running — anything above 0.1V on any pin needs attention before any other PCM diagnosis. Also check C175B pins 35 and 36 (RD, circuit 361, switched run/start voltage) and pin 45 (RD/WH, circuit 729, constant battery feed) under load. The 2007 Town Car PCM is VIN-programmed and requires reflash after replacement — it is not a plug-and-play swap. Ford's IDS or a J2534 pass-thru device is required.
C175T (BK) | LEFT (12B637)
| PIN | COLOR | CIRCUIT | GAUGE | FUNCTION |
|---|---|---|---|---|
| 1 | — | — | — | Not used |
| 2 | — | — | — | Not used |
| 3 | DB/YE | 136 | 20 | Output shaft speed (OSS) sensor signal |
| 4 | — | — | — | Not used |
| 5 | — | — | — | Not used |
| 6 | — | — | — | Not used |
| 7 | — | — | — | Not used |
| 8 | — | — | — | Not used |
| 9 | — | — | — | Not used |
| 10 | — | — | — | Not used |
| 11 | WH/YE | 925 | 20 | Electronic Pressure Control (EPC) solenoid |
| 12 | — | — | — | Not used |
| 13 | — | — | — | Not used |
| 14 | — | — | — | Not used |
| 15 | DG/WH | 970 | 20 | Turbine shaft speed (TSS) sensor signal |
| 16 | YE/BK | 1144 | 20 | Digital Transmission Range (DTR) sensor — TR1 |
| 17 | LB/BK | 1145 | 20 | Digital Transmission Range (DTR) sensor — TR2 |
| 18 | — | — | — | Not used |
| 19 | — | — | — | Not used |
| 20 | — | — | — | Not used |
| 21 | — | — | — | Not used |
| 22 | — | — | — | Not used |
| 23 | — | — | — | Not used |
| 24 | RD/LG | 392 | 18 | Heated oxygen sensor (HO2S) #12 input |
| 25 | VT/LG | 393 | 18 | Heated oxygen sensor (HO2S) #22 input |
| 26 | — | — | — | Not used |
| 27 | RD/BK | 1268 | 20 | Digital Transmission Range (DTR) sensor — TR3A |
| 28 | WH/BK | 1143 | 20 | Digital Transmission Range (DTR) sensor — TR4 |
| 29 | OG/BK | 923 | 20 | Transmission Fluid Temperature (TFT) sensor |
| 30 | — | — | — | Not used |
| 31 | — | — | — | Not used |
| 32 | OG/RD | 1269 | 20 | Anti-theft indicator control |
| 33 | — | — | — | Not used |
| 34 | — | — | — | Not used |
| 35 | — | — | — | Not used |
| 36 | — | — | — | Not used |
| 37 | GY/BK | 679 | 20 | Vehicle speed signal |
| 38 | YE | 1817 | 20 | Generator monitor circuit |
| 39 | — | — | — | Not used |
| 40 | — | — | — | Not used |
| 41 | GY/RD | 359 | 20 | Signal return |
| 42 | OG/YE | 237 | 20 | Shift solenoid A |
| 43 | VT/OG | 315 | 20 | Shift solenoid B |
| 44 | — | — | — | Not used |
| 45 | — | — | — | Not used |
| 46 | VT/YE | 126 | 20 | Torque Converter Clutch (TCC) solenoid |
| 47 | WH/BK | 389 | 18 | Heated oxygen sensor (HO2S) #12 heater |
| 48 | TN/YE | 390 | 18 | Heated oxygen sensor (HO2S) #22 heater |
| 49 | — | — | — | Not used |
| 50 | — | — | — | Not used |
C175B (BK) | CENTER (14290)
| PIN | COLOR | CIRCUIT | GAUGE | FUNCTION |
|---|---|---|---|---|
| 1 | GY/BK | 679 | 20 | Vehicle speed signal |
| 2 | GY/RD | 3405 | 20 | Starter relay control |
| 3 | RD/PK | 791 | 20 | Fuel tank pressure transducer sensor signal |
| 4 | WH/LB | 3093 | 20 | Electronic Throttle Control (ETC), Vref 1 |
| 5 | TN/YE | 1283 | 20 | Accelerator pedal position (APP) sensor 1 signal |
| 6 | TN/WH | 1284 | 20 | Electronic Throttle Control (ETC) signal return |
| 7 | — | — | — | Not used |
| 8 | — | — | — | Not used |
| 9 | OG | 636 | 18 | Deactivator switch signal |
| 10 | BK | 57 | 18 | Ground |
| 11 | WH/LG | 1827 | 20 | HS CAN bus+ |
| 12 | LB/OG | 926 | 20 | Modulated fuel pump signal |
| 13 | VT/WH | 91 | 20 | Evap canister vent control solenoid control |
| 14 | OG/LB | 73 | 20 | A/C clutch relay control |
| 15 | PK/LB | 883 | 20 | A/C cycling switch signal |
| 16 | — | — | — | Not used |
| 17 | WH | 3012 | 20 | Accelerator pedal position (APP) sensor 2 signal |
| 18 | — | — | — | Not used |
| 19 | LB/BK | 151 | 20 | Speed control switch reference voltage |
| 20 | YE/BK | 1799 | 20 | RDI / VEMS signal |
| 21 | DG/YE | 238 | 20 | Fuel pump monitor |
| 22 | — | — | — | Not used |
| 23 | PK/LG | 1828 | 20 | HS CAN bus− |
| 24 | LB/BK | 3091 | 20 | Electronic Throttle Control (ETC), Vref 2 |
| 25 | — | — | — | Not used |
| 26 | WH/BK | 1154 | 20 | A/C pressure transducer sensor signal |
| 27 | — | — | — | Not used |
| 28 | WH/RD | 3015 | 20 | Accelerator pedal position (APP) sensor 3 signal |
| 29 | TN/WH | 224 | 20 | Transmission control switch signal |
| 30 | DG/OG | 848 | 20 | Speed control switch, signal return |
| 31 | WH/LG | 1215 | 20 | TX signal |
| 32 | YE/LB | 1816 | 20 | Generator communication |
| 33 | — | — | — | Not used |
| 34 | YE/LG | 330 | 20 | Power steering pressure switch signal |
| 35 | RD | 361 | 20 | Voltage supplied in start and run (overload protected) |
| 36 | RD | 361 | 20 | Voltage supplied in start and run (overload protected) |
| 37 | — | — | — | Not used |
| 38 | — | — | — | Not used |
| 39 | — | — | — | Not used |
| 40 | BR/WH | 351 | 20 | Reference voltage |
| 41 | GY/RD | 359 | 20 | Signal return |
| 42 | GY/OG | 1216 | 20 | RX signal |
| 43 | — | — | — | Not used |
| 44 | VT | 107 | 20 | Flash / EEPROM power supply |
| 45 | RD/WH | 729 | 20 | Voltage supplied at all times (overload protected) |
| 46 | — | — | — | Not used |
| 47 | BK/WH | 570 | 18 | Ground |
| 48 | BK/WH | 570 | 18 | Ground |
| 49 | BK/WH | 570 | 18 | Ground |
| 50 | BK/WH | 570 | 18 | Ground |
C175E (BK) | RIGHT (12B637)
| PIN | COLOR | CIRCUIT | GAUGE | FUNCTION |
|---|---|---|---|---|
| 1 | — | — | — | Not used |
| 2 | — | — | — | Not used |
| 3 | WH/OG | 369 | 20 | Heated PTC control |
| 4 | — | — | — | Not used |
| 5 | YE | 1817 | 20 | Generator monitor control |
| 6 | LG/BK | 191 | 20 | EVAP canister purge control |
| 7 | RD/OG | 229 | 20 | Engine cooling fan motor control |
| 8 | — | — | — | Not used |
| 9 | WH/RD | 1029 | 20 | Coil-on-plug (COP) 8 control |
| 10 | LG/YE | 1021 | 20 | Coil-on-plug (COP) 5 control |
| 11 | PK/WH | 1026 | 20 | Coil-on-plug (COP) 2 control |
| 12 | WH/PK | 1028 | 20 | Coil-on-plug (COP) 3 control |
| 13 | — | — | — | Not used |
| 14 | DG/VT | 1030 | 20 | Coil-on-plug (COP) 4 control |
| 15 | OG/YE | 1025 | 20 | Coil-on-plug (COP) 6 control |
| 16 | PK/LB | 1027 | 20 | Coil-on-plug (COP) 7 control |
| 17 | LG/WH | 1024 | 20 | Coil-on-plug (COP) 1 control |
| 18 | — | — | — | Not used |
| 19 | LB | 1164 | 20 | Fuel rail temperature sensor signal |
| 20 | — | — | — | Not used |
| 21 | BR/LG | 352 | 20 | Differential Pressure Feedback EGR (DPFE) sensor input |
| 22 | GY | 743 | 20 | Intake Air Temperature (IAT) sensor signal |
| 23 | — | — | — | Not used |
| 24 | — | — | — | Not used |
| 25 | LB/RD | 967 | 20 | Mass Air Flow (MAF) sensor signal |
| 26 | TN/LB | 968 | 20 | Mass Air Flow (MAF) sensor signal |
| 27 | — | — | — | Not used |
| 28 | GY/LB | 74 | 18 | Heated oxygen sensor (HO2S) #11 input |
| 29 | RD/BK | 94 | 18 | Heated oxygen sensor (HO2S) #21 input |
| 30 | — | — | — | Not used |
| 31 | — | — | — | Not used |
| 32 | RD/PK | 141 | 20 | Fuel rail pressure sensor signal |
| 33 | — | — | — | Not used |
| 34 | DB/YE | 1835 | 18 | Electronic Throttle Control (ETC) motor +/− |
| 35 | WH | 556 | 20 | Fuel injector 2 control |
| 36 | BR/LB | 558 | 20 | Fuel injector 4 control |
| 37 | LG/OG | 560 | 20 | Fuel injector 6 control |
| 38 | LB | 562 | 20 | Fuel injector 8 control |
| 39 | — | — | — | Not used |
| 40 | — | — | — | Not used |
| 41 | YE/LG | 1102 | 20 | Cylinder head temperature (CHT) sensor signal |
| 42 | — | — | — | Not used |
| 43 | — | — | — | Not used |
| 44 | — | — | — | Not used |
| 45 | DB/OG | 282 | 20 | Camshaft position sensor signal |
| 46 | GY/YE | 139 | 20 | Crankshaft position sensor − |
| 47 | BK/PK | 138 | 20 | Crankshaft position sensor + |
| 48 | YE | 1273 | 20 | Knock sensor − |
| 49 | YE/RD | 310 | 20 | Knock sensor + |
| 50 | — | — | — | Not used |
| 51 | OG/YE | 1836 | 18 | Electronic Throttle Control (ETC) motor +/− |
| 52 | TN | 555 | 20 | Fuel injector 1 control |
| 53 | BR/YE | 557 | 20 | Fuel injector 3 control |
| 54 | TN/BK | 559 | 20 | Fuel injector 5 control |
| 55 | TN/RD | 561 | 20 | Fuel injector 7 control |
| 56 | — | — | — | Not used |
| 57 | BR/WH | 351 | 20 | Reference voltage |
| 58 | GY/RD | 359 | 20 | Signal return |
| 59 | PK/OG | 1858 | 20 | Electronic Throttle Control (ETC) module signal return |
| 60 | YE/WH | 357 | 20 | Throttle Position Sensor (TPS) signal 2 |
| 61 | GY/WH | 355 | 20 | Throttle Position Sensor (TPS) signal 1 |
| 62 | LB/RD | 3067 | 20 | Manifold Absolute Pressure (MAP) sensor input |
| 63 | BR/PK | 360 | 20 | EGR Vacuum Regulator (EVR) signal |
| 64 | — | — | — | Not used |
| 65 | — | — | — | Not used |
| 66 | YE/WH | 1857 | 20 | Electronic Throttle Control (ETC) module reference voltage |
| 67 | — | — | — | Not used |
| 68 | — | — | — | Not used |
| 69 | RD/WH | 387 | 18 | Heated oxygen sensor (HO2S) #11 heater |
| 70 | YE/LB | 388 | 18 | Heated oxygen sensor (HO2S) #21 heater |
Wire Color Legend
- BK — Black
- BR — Brown
- DB — Dark Blue
- DG — Dark Green
- GY — Gray
- LB — Light Blue
- LG — Light Green
- OG — Orange
- PK — Pink
- RD — Red
- TN — Tan
- VT — Violet
- WH — White
- YE — Yellow
Central Junction Fuse Box Data & Info
Location: Driver's side compartment, under steering wheel | All information verified with AllData.
The Central Junction Box (CJB) on the 2007 Town Car — also referred to as the instrument panel fuse box or I/P fuse box — is the interior counterpart to the under-hood BJB. It distributes switched and unswitched power to the cabin electronics: lighting control module, HVAC, wiper motor, audio and navigation, door modules, PATS transceiver, seat modules, restraints module, and more. The Town Car CJB layout for 2007 differs meaningfully from the Crown Vic: position 1 adds the starter relay coil to the DTR sensor feed, position 6 adds PCM power relay and fuel pump relay to the PATS circuit, position 8 adds the Power Decklid Module (PDM), overdrive cancel switch, cluster, and compass module, and position 19 includes the Liftgate/Trunk Module (LTM) and Driver Seat Module (DSM) — none of which appear in the Crown Vic CJB for this year. The Town Car does not have the Crown Vic's police-specific positions (29, 30, 32). Position 32 is instead a 7.5A delayed accessory feed for navigation, audio, and moonroof — a luxury-spec circuit absent on the police car.
The same water intrusion failure mode that affects Crown Vic CJBs applies here, but Town Car livery use adds a layer: high-cycle vehicles see more connector flex, vibration, and thermal cycling than civilian cars. The PDM circuit (CJB 8) is a common source of intermittent decklid behavior on high-mileage Town Cars — if the decklid opens sluggishly or fails to latch consistently, check voltage at CJB fuse 8 under load and inspect the connector for corrosion before replacing the PDM module. The same two-step process applies across all CJB faults: find and eliminate the water source first, then inspect connectors and replace damaged terminals. Cleaning corroded contacts on a Town Car that's seen years of livery duty only delays the next failure.
| # | AMP | FUNCTION |
|---|---|---|
| 1 | 10A | Digital Transmission Range (DTR) sensor, Starter relay coil |
| 2 | 10A | Restraints Control Module (RCM), Passenger Airbag Deactivation (PAD) indicator, Occupant Classification System Module (OCSM) |
| 3 | 10A | Audio, Navigation control head (2007); Audio (2008–2011) |
| 4 | 10A | Back-up lamps (2007–2008); Back-up lamps, Anti-lock Brake System (ABS) (2009–2011) |
| 5 | 7.5A | Lighting Control Module (LCM) |
| 6 | 10A | Passive anti-theft transceiver module, Ignition coils relay, PCM power diode, PCM power relay, Fuel pump relay |
| 7 | 10A | Windshield wiper motor |
| 8 | 10A | Power Decklid Module (PDM), Overdrive cancel switch, Cluster, Compass module, Lighting Control Module (LCM) (2007–2008); Power Decklid Module (PDM), Overdrive cancel switch, Cluster, Compass module, LCM, Traction control switch (2009–2011) |
| 9 | 7.5A | Mirror switch illumination, Door lock switch illumination, Heated seat switch illumination, Electrochromatic mirror (2007–2008); Door lock switch illumination, Heated seat switch illumination, Electrochromatic mirror (2009–2011) |
| 10 | 15A | Multi-function switch (Hazard lamps) |
| 11 | 15A | Multi-function switch (Turn signal lamps) |
| 12 | 15A | Audio unit, Audio / navigation control unit, Navigation module |
| 13 | 10A | Extended rear park aid module, Anti-lock Brake System (ABS), Cluster (2007–2008); Extended rear park aid module, Cluster (2009–2011) |
| 14 | 15A | Adjustable pedal switch, Accessory delay relay |
| 15 | 10A | HVAC module |
| 16 | 20A | Cigar lighter, OBD II (2007–2008); OBD II only (2009–2011) |
| 17 | 10A | A/C cycling switch, Front heated seat module |
| 18 | 15A | Lighting Control Module (LCM) |
| 19 | 7.5A | Keypad switch assembly, Exterior rear view mirror switch, Driver Door Module (DDM), Liftgate/Trunk Module (LTM), Luggage compartment lid release switch, Driver Seat Module (DSM), Seat adjust switch driver side front, Door lock switch driver and passenger side, Autolamp sensor |
| 20 | 10A | Lighting Control Module (LCM) |
| 21 | 10A | Clock, Lighting Control Module (LCM) |
| 22 | 10A | Lighting Control Module (LCM) |
| 23 | 10A | Lighting Control Module (LCM) |
| 24 | 15A | Lighting Control Module (LCM), Multi-function switch (flash to pass) |
| 25 | 10A | Instrument Cluster (IC), HVAC module |
| 26 | 15A | Lighting Control Module (LCM) |
| 27 | — | Not used |
| 28 | 7.5A | Anti-lock Brake System (ABS) module, Lighting Control Module (LCM) |
| 29 | — | Not used |
| 30 | — | Not used |
| 31 | 5A | Lighting Control Module (LCM) |
| 32 | 7.5A | Delayed accessory (navigation, audio, moonroof) (2007); Delayed accessory (audio) (2008–2011) |
| 33 | — | Not used |
| R | RELAY | Accessory delay relay |
Legend
- # — Terminal Position
- ABS — Anti-lock Brake System
- ACC — Accessory
- AMP — Terminal Amperage
- DDM — Driver's Door Module
- DRL — Daytime Running Lamps
- DSM — Driver Seat Module
- DTR — Digital Transmission Range
- EATC — Electronic Automatic Temperature Control
- FUNCTION — Circuit Function
- LCM — Lighting Control Module
- LTM — Liftgate/Trunk Module
- MFS — Multi-Function Switch
- OBD — On-Board Diagnostics
- OCSM — Occupant Classification System Module
- PAD — Passenger Airbag Deactivation
- PATS — Passive Anti-Theft System
- PCM — Powertrain Control Module
- PDM — Power Decklid Module
- R — Relay
- RASM — Rear Air Suspension Module
- RCM — Restraints Control Module
Trim Level Fuse Differences
The 2007 Lincoln Town Car was offered in four trim levels: Executive, Signature, Signature Limited, and Signature L (long wheelbase). The Executive is the base trim with fewer comfort features. The Signature and Signature Limited add heated and cooled seats, upgraded audio, rear climate controls, and memory seat systems. The Signature L adds the extended wheelbase with additional rear passenger features. Several fuse and relay positions are populated differently depending on which features are equipped — if you're working on a Town Car and the fuse layout doesn't match what's in the diagram, the trim level is the first thing to confirm.
| Position | Executive | Signature / Signature Limited / Signature L |
|---|---|---|
| BJB #2 | 20A — Rear heated seats only (if equipped) | 20A — Moonroof + Rear heated seats (2007) |
| BJB #15 | 15A — Lumbar only | 15A — Lumbar, Fuel door |
| BJB #16 | Not populated (if no heated seats) | 20A — Heated seats (front and rear) |
| BJB #111 | Not present on standard WB | 20A — Rear power point #1 Left (Signature L) |
| BJB #113 | Not present on standard WB | 20A — Rear power point #2 Right (Signature L) |
| BJB #115 | Not present on standard WB | 20A — Rear cigar lighters (Signature L) |
| BJB #602 CB | 20A CB — Windows, audio | 20A CB — Windows, moonroof, audio, navigation (2007) |
| CJB #3 | 10A — Audio only | 10A — Audio + Navigation control head (2007) |
| CJB #8 | 10A — PDM, Cluster, LCM | 10A — PDM, Overdrive cancel, Cluster, Compass, LCM (+ Traction control 2009–2011) |
| CJB #9 | 7.5A — Door lock sw illumination, Electrochromatic mirror | 7.5A — Mirror sw illumination, Door lock sw illumination, Heated seat sw illumination, Electrochromatic mirror (2007–2008) |
| CJB #12 | 15A — Audio unit | 15A — Audio unit, Navigation control unit, Navigation module |
| CJB #17 | Not populated (if no heated seats) | 10A — A/C cycling switch, Front heated seat module |
| CJB #19 | 7.5A — DDM, Mirror switch, Door lock switches | 7.5A — DDM, LTM, DSM, Seat adjust switch, Keypad, Mirror switch, Door lock switches, Autolamp sensor |
| CJB #32 | Not populated or limited | 7.5A — Delayed accessory: navigation, audio, moonroof (2007) |
Known Issues & TSB Reference
The items below are documented issues Ford and Lincoln acknowledged for the 2007 Town Car — through Technical Service Bulletins (TSBs), extended warranty coverage, or pattern failures well-established in the platform community. This is not a complete TSB list, but covers the issues most relevant to someone maintaining or diagnosing a 2007. Full TSB text is available through ALLDATA, Mitchell1, or your local Ford/Lincoln dealer's service department.
TSB 07-15-6 — ETC Throttle Concern / Reduced Power Mode
Some 2007 Town Car vehicles may exhibit reduced power or no-throttle-response traced to the electronic throttle control system. Symptoms include a wrench indicator on the dash and P2135 or related ETC fault codes. Root cause is typically contamination or wear at the APP sensor assembly or throttle body connector. Verify APP sensor voltages at C175B pins 5, 17, and 28 individually before condemning the throttle body or PCM — all three signals must track together through pedal travel. The Town Car PCM calibration differs from the Crown Vic; confirm you're using the correct module ID before reflashing.
TSB 07-5-5 — Exhaust Manifold Crack / Exhaust Tick
Some 2003–2009 Town Car vehicles may exhibit an exhaust tick or rattle most noticeable at cold start. Cause is cracking at the exhaust manifold runners near the ports from thermal cycling — a known fatigue failure on the Romeo 4.6L two-valve. Inspect with the engine cold; cracks may be hairline but audible. Replacement manifolds are the correct fix — do not attempt to weld cracked cast iron. Town Cars used in livery or taxi service see more thermal cycles than typical civilian cars, which accelerates this failure mode.
Known Issue — Power Decklid Module (PDM) / Trunk Lid Failure
The Town Car's powered trunk lid system is fed through BJB fuse 108 (40A) and the Decklid Pulldown Module at BJB fuse 116 (30A). High-mileage Town Cars, particularly those with livery history, commonly develop intermittent trunk lid operation from one of three causes: (1) corrosion at BJB 108 or 116 fuse legs creating voltage drop to the PDM — check drop under load before replacing the module; (2) worn trunk lid hinge springs allowing the lid to not seat flush, which overworks the pulldown motor; (3) failed PDM internal relay. Confirm clean power and ground at the module before condemning it. The PDM is physically located in the trunk and can be tested by measuring voltage at its harness connector while actuating the lid release.Reference: Common platform pattern failure — 2003–2011 Town Car PDM
Known Issue — Rear Air Suspension Compressor Failure / Air Spring Leak
The Town Car rear air suspension compressor is fed through BJB fuse 112 (30A RASM air compressor) with the RASM module at BJB fuse 13 (10A). Leak in an air spring or fitting causes the compressor to run continuously until it fails or trips thermal protection — common on high-mileage Town Cars. Symptoms are a sagging rear end, compressor that runs constantly, or a repeatedly blown BJB 112 fuse. Isolate the air spring leak first (soapy water test at fittings and bag seams). A compressor that has run dry from an unresolved leak will need replacement even after the spring is fixed. Check the air line fittings at the rear spring bags and at the compressor head before ordering components.Reference: TSB 06-21-6 — Rear Air Suspension, 2003–2007 Panther platform
Known Issue — Lighting Control Module (LCM) Solder Joint Failure
Affects 2003–2007 Town Car (and Crown Victoria, Grand Marquis). The LCM relay develops a cracked solder joint on the circuit board, causing intermittent or total failure of headlamps, taillamps, or other LCM-controlled lighting. The LCM is behind the driver's kick panel. Inspect the relay solder joint before replacing the module — a quality re-solder is the correct fix if the circuit board is otherwise intact. Multiple CJB positions feed through the LCM (fuses 5, 18, 20, 21, 22, 23, 24, 26, 28, 31), so an LCM fault can present as multiple apparently unrelated lighting failures simultaneously.
Scheduled Maintenance Intervals
The intervals below reflect Ford's Normal Schedule for the 2007 Lincoln Town Car. Normal schedule applies to typical everyday driving. Vehicles used for livery, taxi, or limousine service — which describes a large percentage of surviving 2007 Town Cars — are Special Operating Conditions vehicles and require significantly shorter intervals, particularly on engine oil, transmission fluid, and brake inspection. A Town Car with livery history is not a normal-schedule car regardless of what the odometer reads.
| Service Item | Normal Interval | Notes |
|---|---|---|

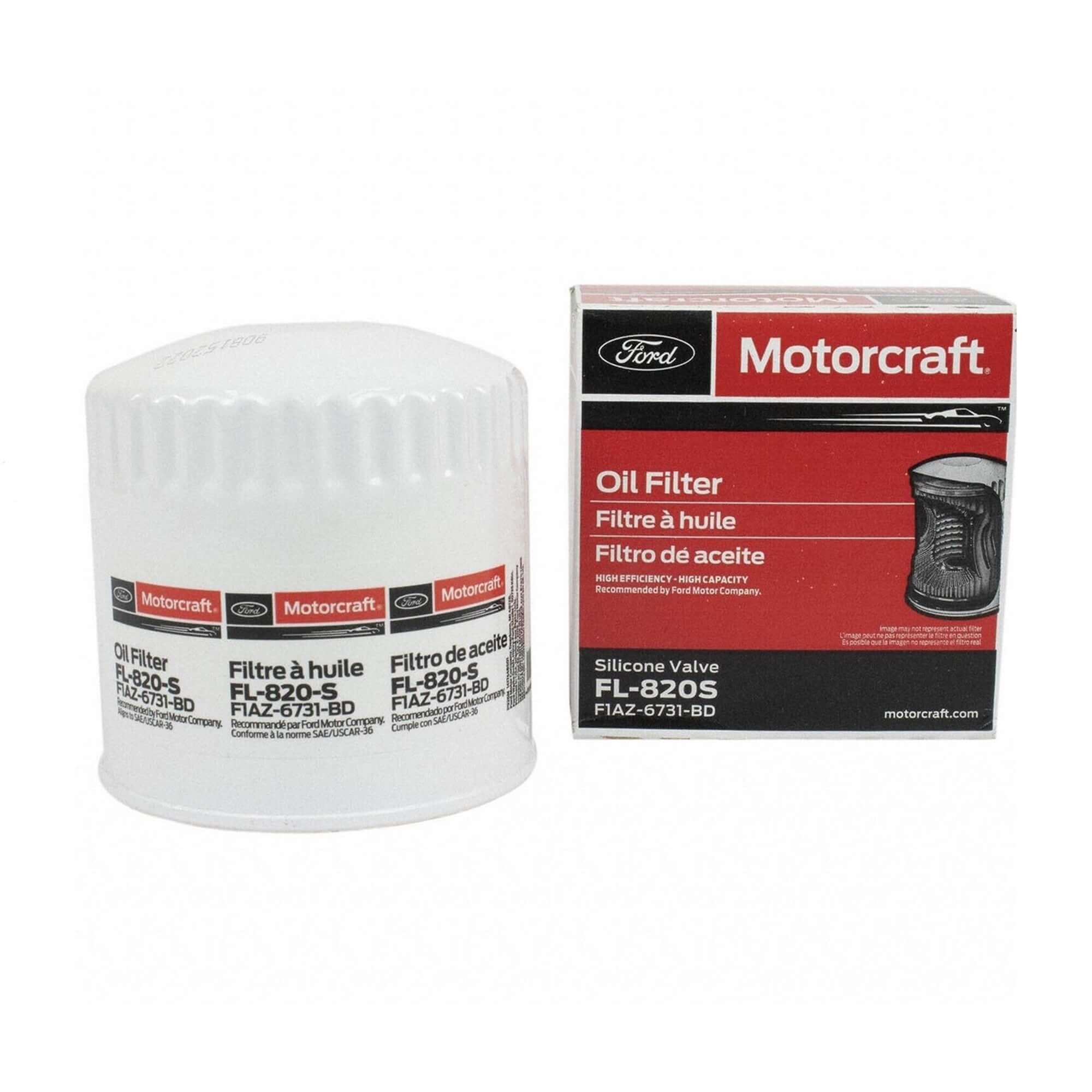

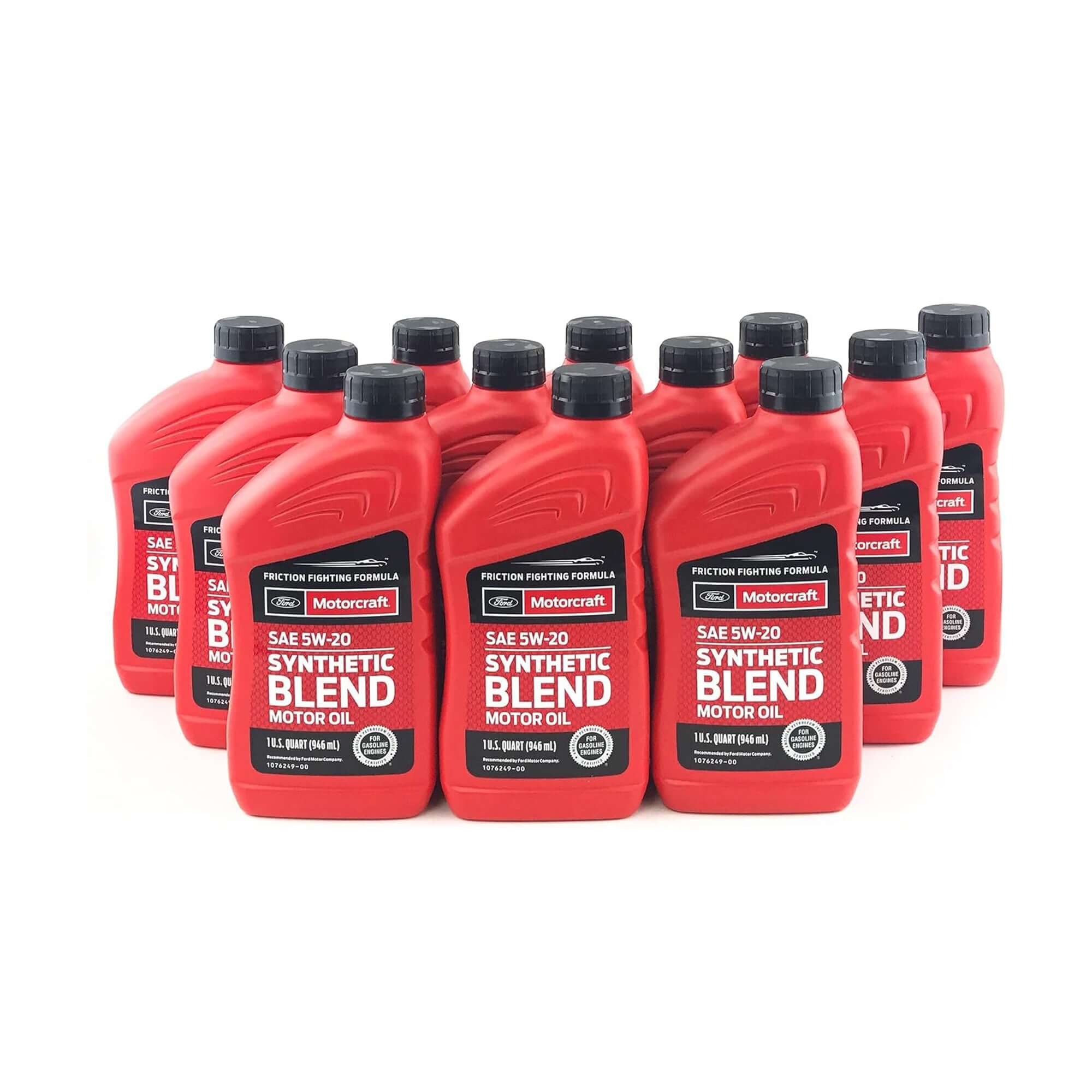

| Engine Oil & Filter | Every 5,000 miles or 6 months | SAE 5W-20 — 6 qts with filter. Livery / taxi: every 3,000 mi or 3 months |
| Tire Rotation | Every 5,000 miles | Inspect for wear at each rotation |
| Engine Air Filter | Every 30,000 miles | Replace sooner in dusty conditions |
| Fuel Filter | Every 30,000 miles | Livery / heavy use: every 15,000 miles |
| Spark Plugs | Every 100,000 miles | Motorcraft SP-413 — gapped at 0.054 in. Do not reuse if coil boots are cracked |
| PCV Valve | Every 100,000 miles | Replace at same interval as plugs |
| Serpentine Drive Belt | Inspect at 100,000 miles | Motorcraft JK6-926 — replace if cracked, glazed, or fraying. Check tensioner and idler at same time |

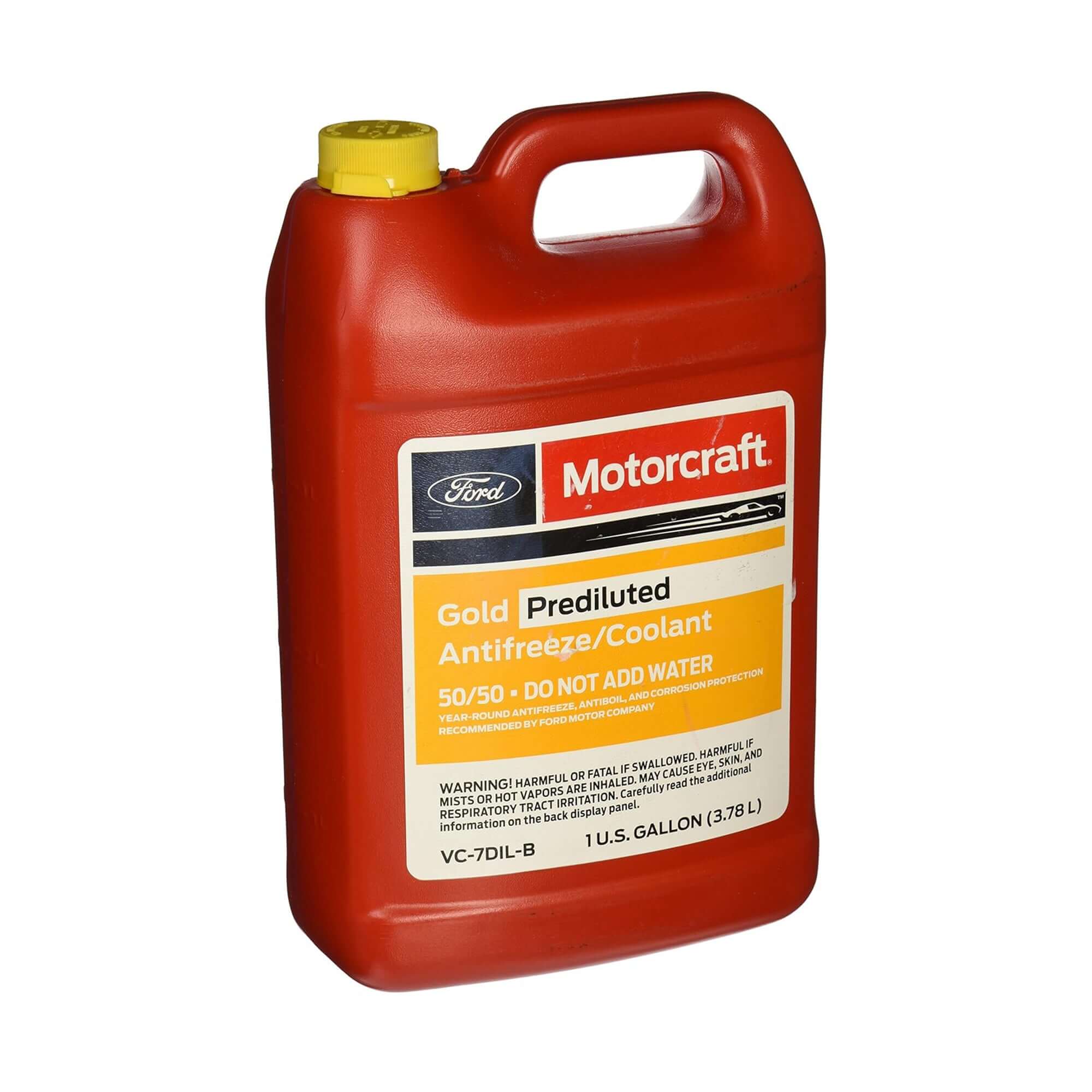

| Engine Coolant | First change at 6 years or 100,000 miles | Motorcraft Premium Gold (yellow) — then every 3 years / 50,000 miles after. Do not mix with green coolant |
| Automatic Transmission Fluid | Inspect at 15,000 mi intervals — change at 150,000 miles | Mercon V only — do not substitute. Livery / heavy use: every 30,000 miles. Check condition, not just level |
| Brake Fluid | As needed / inspect annually | DOT 3 — replace if dark or boiling point has degraded from moisture absorption |
| Brake System Inspection | Every 15,000 miles | Pads, rotors, lines, hoses, and parking brake. Livery / heavy use: every 5,000 miles |
| Rear Axle Lubricant | Inspect — synthetic fill considered "for life" under normal use | Livery / taxi: replace every 100,000 miles. 80W-90 standard or 75W-140 synthetic |
| Power Steering Fluid | Check at every oil change | Mercon ATF — check condition and level. ~2 pint capacity |

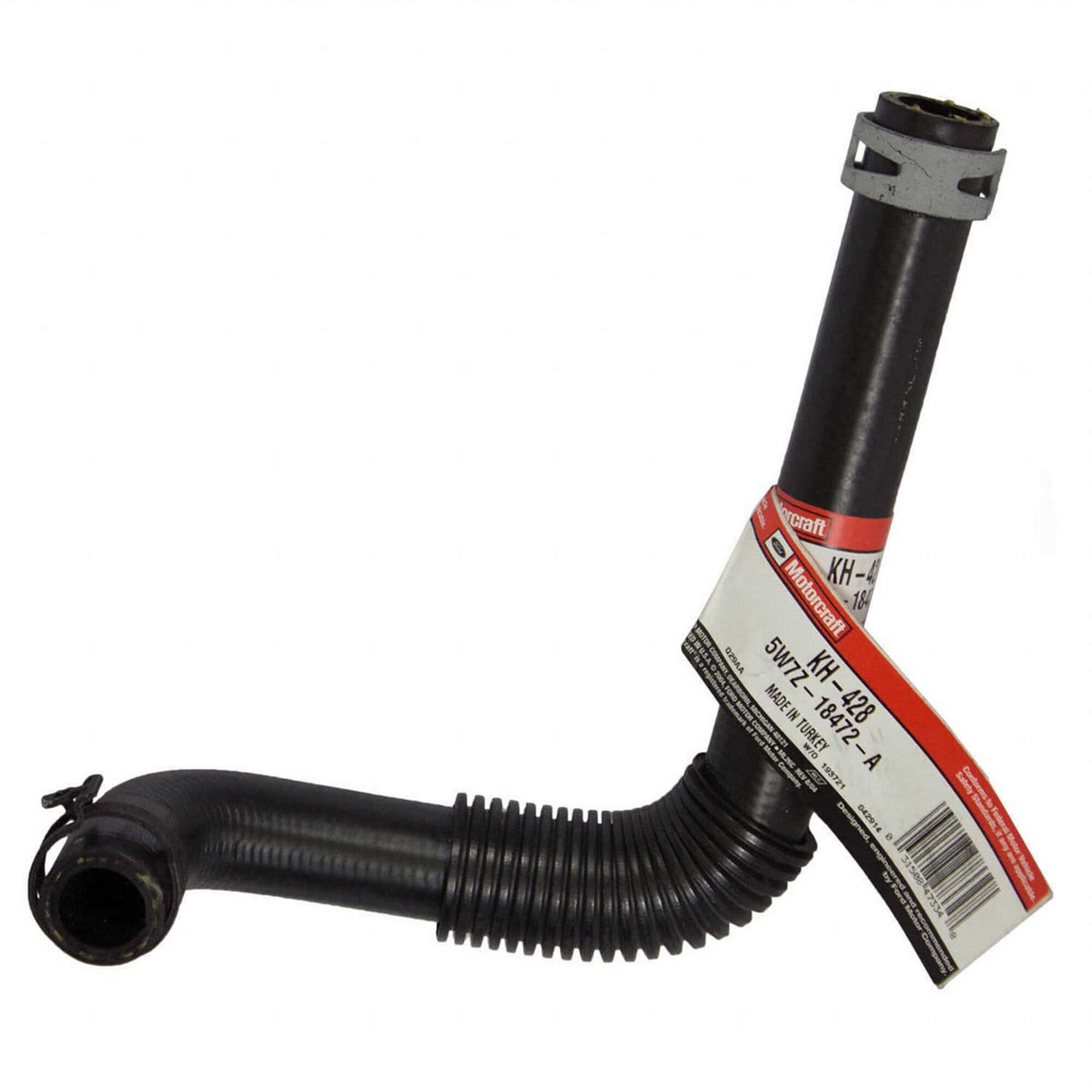

| Cooling System Hoses | Inspect at every major service | Replace heater hose assembly at first sign of seeping — Motorcraft KH428 |
Other Lincoln Town Car Years
- 2003 Lincoln Town Car
- 2004 Lincoln Town Car
- 2005 Lincoln Town Car
- 2006 Lincoln Town Car
- 2007 Lincoln Town Car — You are here
- 2008 Lincoln Town Car
- 2009 Lincoln Town Car
- 2010 Lincoln Town Car
- 2011 Lincoln Town Car
Other Panther Platform Models
Data Disclaimer & Limitation of Liability
Read before using any data published on this site
Informational use only. All fuse assignments, relay positions, wire color codes, pin assignments, circuit numbers, connector identifiers, engine specifications, transmission specifications, torque values, maintenance intervals, and technical service bulletin references published on this site are provided for informational and reference purposes only. This data is not a substitute for a factory Ford, Lincoln, or Mercury service manual, an ALLDATA or Mitchell1 subscription, or the judgment of a qualified, licensed automotive technician.
No warranty. Data provided as-is. Riot Mind Studios, LLC makes no representations or warranties of any kind — express, implied, or statutory — regarding the completeness, accuracy, currency, or fitness for a particular purpose of any data published on this site. All information is provided strictly on an "as-is" and "as-available" basis. We do not warrant that any data point is free from error, omission, or misprint. We do not warrant that this data reflects the current production configuration of any specific vehicle.
Vehicle condition and prior modifications. The Panther Platform vehicles covered by this database (2003–2011 Ford Crown Victoria, Lincoln Town Car, Mercury Grand Marquis, and Mercury Marauder) are aging vehicles with decades of potential service history. Individual vehicles may have been subject to dealer modifications, police upfitter conversions, aftermarket electrical work, wiring repairs, fuse upgrades, or component substitutions that are not reflected in factory documentation or in the data published here. You are responsible for verifying all data against the actual condition of your specific vehicle before performing any repair, diagnostic test, or electrical work.
Model year and trim variation. Fuse assignments, relay types, PCM pin functions, and circuit configurations vary across model years, between trim levels (LX, P71/Police Interceptor, Executive, Signature, GS, LS, HPP, etc.), and in some cases between build dates within the same model year. Data that is accurate for one configuration may be incorrect or inapplicable for another. Always cross-reference this database against a source that is specific to your vehicle's model year, trim level, and build date.
Limitation of liability. To the fullest extent permitted by applicable law, Riot Mind Studios, LLC, its owner, affiliates, and any contributors shall not be liable for any direct, indirect, incidental, special, consequential, or punitive damages arising out of or related to your use of, or inability to use, any data, specification, schematic reference, or other content published on this site. This includes, without limitation: personal injury; vehicle damage; electrical damage; fire; failed emissions or safety inspections; failed diagnostic procedures; incorrect repairs; financial loss; towing costs; or damage to tools or property. Your use of this data is entirely at your own risk.
Professional consultation. Always consult a qualified technician before performing work on safety-critical systems including but not limited to: anti-lock brakes (ABS), supplemental restraint systems (SRS/airbags), fuel delivery, ignition, emissions-related components, and any circuit connected to the Powertrain Control Module (PCM). Incorrect wiring or fuse substitution on these systems can cause personal injury, fire, or permanent damage to vehicle electronics.
Affiliate links. Some links on this site are Amazon affiliate links. Riot Mind Studios, LLC earns a small commission on qualifying purchases at no additional cost to you. Affiliate links do not influence the data or technical content published on this site.
Third-party sources. Some data on this site is derived or cross-referenced from third-party sources including Ford Motor Company factory documentation, ALLDATA, and community-sourced vehicle databases. Riot Mind Studios, LLC does not represent Ford Motor Company, Lincoln, Mercury, or any affiliated brand in any capacity. All trademarks, model names, and manufacturer references are the property of their respective owners and are used here for identification purposes only.
